Cylinders, Sensors, Shock Absorbers and Vacuum Components
Complete Pneumatic Solutions for Your System
From cylinders and sensors to shock absorbers and vacuum components, our pneumatic range delivers accuracy, reliability, and long-lasting performance. Whether you’re upgrading a system or building a new solution, we provide the components—and the expertise—to keep your operations running smoothly.
Compact carriages with ball guide ELX (8-20)
Pneumatic compact carriages ball guide double piston high load precision magnetic pistons stroke limiters SMC MXS compatible mounting

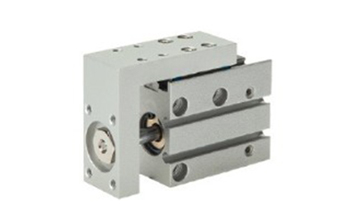

Compact carriages with ball guide EXH (6-20)
Pneumatic compact carriages with ball guides offer high load accuracy magnetic piston sensing compact mounting SMC MXH compatible design

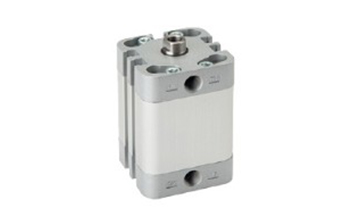

Compact cylinder ISO 21287 (20-63)
ISO 21287 compact cylinders interchangeable magnetic pistons T groove sensing standardized size recommend SQ or ND NE for tight spaces

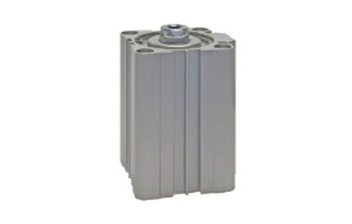

Compact cylinder LCDQ (Eco-Line)
Compact cylinder LCDQ (Eco-Line)

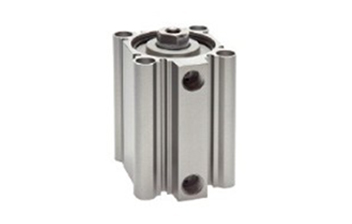

Compact cylinder SQN (12-100)
Compact SQN cylinders double acting SMC CQ2A compatible magnetic pistons C groove sensing recommend ISO 21287 for spares

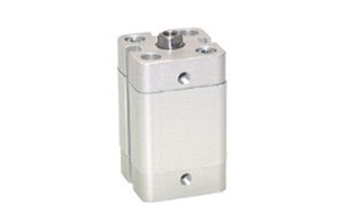

Compact cylinder UNITOP (12-100)
UNITOP style cylinders have limited standardization check dimensions when replacing magnetic pistons included ISO 21287 compact cylinders recommended alternative

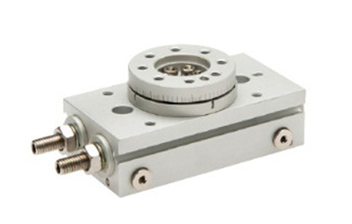

Compact swivel tables EMQ (size -7-50)
Pneumatic compact rotary tables rack pinion high load adjustable swivel magnetic pistons shock absorber option SMC MSQ EMSQ compatible

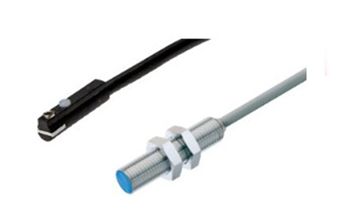

Cylinder switch & sensors
Cylinder switches reed or electronic detect piston position T groove C groove or band mounting fit most cylinders

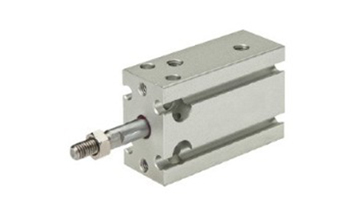

Direct assembly cylinder EU (6-32)
Direct mount pneumatic cylinders compact economical magnetic pistons optional anti twist six side mounting SMC CDU CDUK compatible replacements

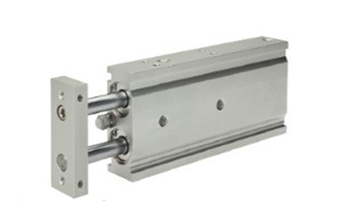

Double piston cylinder with guide EXSM (6-32)
Double piston sliding guide cylinders suit pick and place magnetic pistons adjustable stroke universal ports SMC CXS compatible mounting
Guide cylinder
Guided cylinders with dual guides handle side loads magnetic pistons sensing ball or slide bearings SMC MGPM compatible design
Hydraulic cylinders
Hydraulic cylinders from economical HEQ HDQS to industrial solutions pumps hoses tools up to 700 bar SPX Power Team

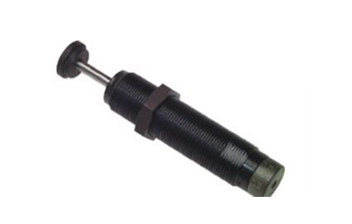

Industrial shock absorbers
External shock absorbers improve cylinder damping adjustable or self adjusting ACE options protect service life for high loads speeds

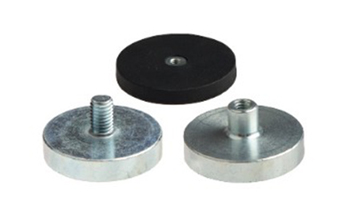

Magnetgreifer
Magnetic systems in ferrite or neodymium offer temperature or strength benefits pot housings boost force rubber coating protects surfaces
Mounting material for pneumatic cylinders
Yokes with bolts, for pneumatic cylinders ISO 15552

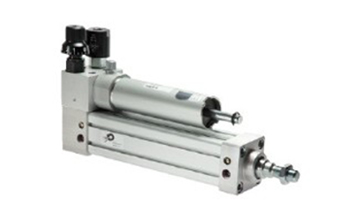

Oil brake cylinder ( main mounting dimensions acc. to ISO 15552)
Oil brake cylinders ISO 15552 compatible integrated load independent speed control stop skip choke options magnetic piston adjustable cushioning

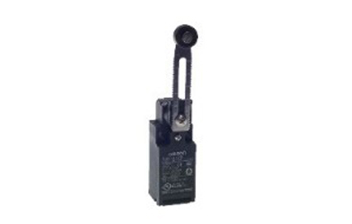

Omron limit switches & relays
Along with relays, controllers and switches from OMRON, we also supply foot switches and resistor thermometers from stock.

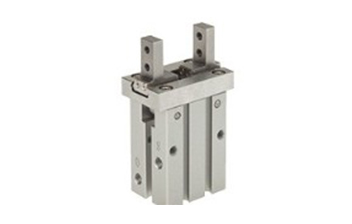

Parallel gripper & 180 angle gripper SHZ, SHR & SHF
Parallel and angled grippers SMC compatible double or single acting magnetic pistons enable precise positioning tool change sensing

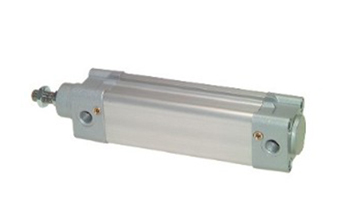

Pneumatic cylinder ISO (32-230)
ISO 15552 pneumatic cylinders interchangeable stainless options adjustable cushioning magnetic piston supports multiple cylinder switch mounting methods

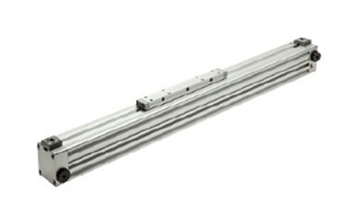

Rodless cylinders (18-63)
Rodless pneumatic cylinders standard or short mechanical slotted coupling custom strokes fast torque limits recommend guided versions

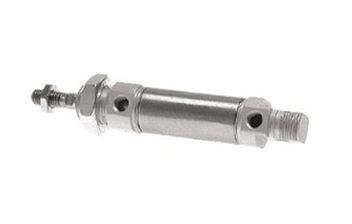

Round cylinder ISO 6432 (8-25)
SO 6432 pneumatic round cylinders interchangeable magnetic pistons stainless options food industry elastic cushioning adjustable damping for higher loads

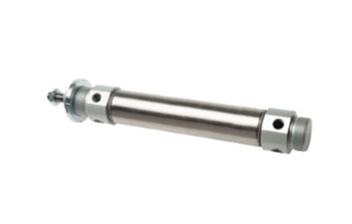

Round cylinders (32-63)
Non standard pneumatic round cylinders DSW compatible mainly for repairs magnetic piston sensing for new builds choose ISO 15552 cylinders

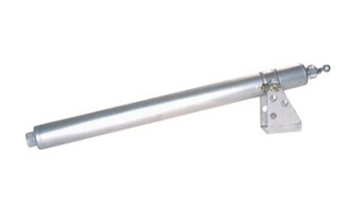

RWA (exhaust) cylinders, double action with locking
RWA (exhaust) cylinders, double-action with locking

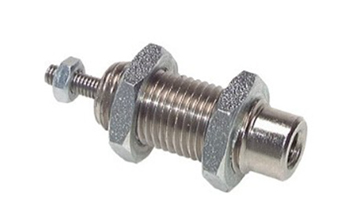

Screw-in cylinder (0-16)
Single acting screw in cartridge cylinders compact corrosion resistant threaded brass body spring return versatile mounting interchangeable designs options

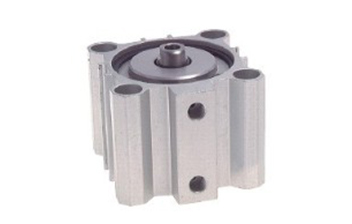

Short -stroke cylinders ND-NE (12-100)
Non standard short stroke cylinders single or double acting compact many variants magnetic versions allow sensing ISO 21287 compact cylinders recommended

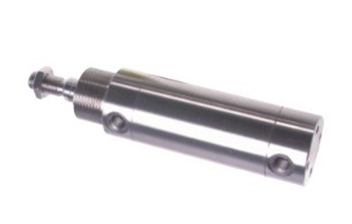

Stainless steel round cylinder ISO 6431)
Stainless steel pneumatic round cylinders ISO 6431 recommended only as spares for new builds use ISO 15552 cylinders
Swivel clamping cylinder (swivel clamp) SQK (16-40)
Pneumatic swivel clamping cylinders rotate ninety degrees then clamp magnet piston enables sensing SMC MKB compatible do not clamp during swivel

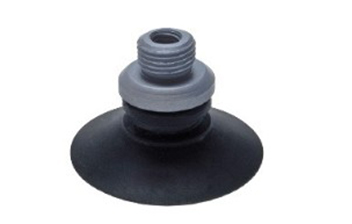

Vacuum ejectors, vacuum suction cups & accessories
Vacuum ejectors single or multistage save energy PIAB compatible suction cups materials flat bellows optional mounts spring plungers compensate height
Vibrators
Pneumatic vibrators include linear or rotating types ball roller turbine designs offering varied frequencies amplitudes ATEX safe pressure controlled operation
